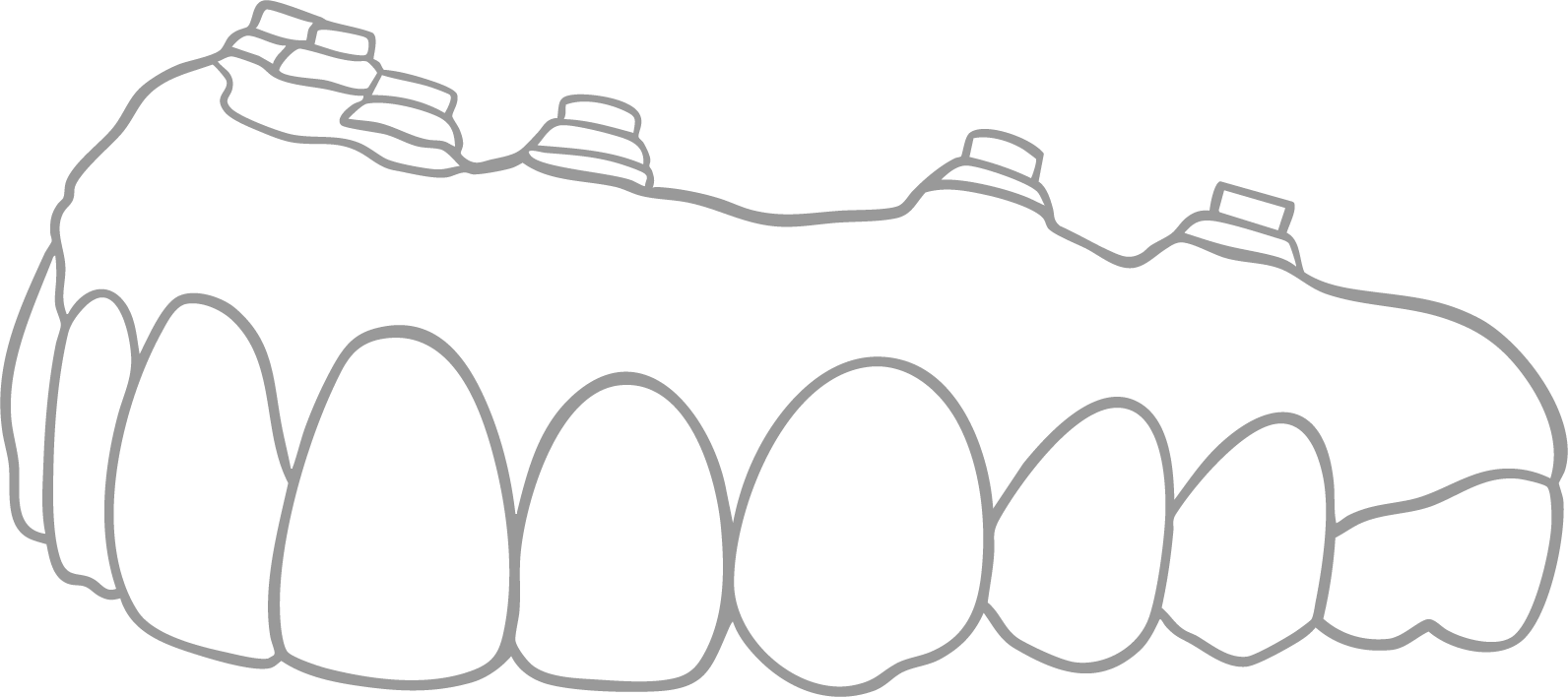

TLZ-IB Zirconia

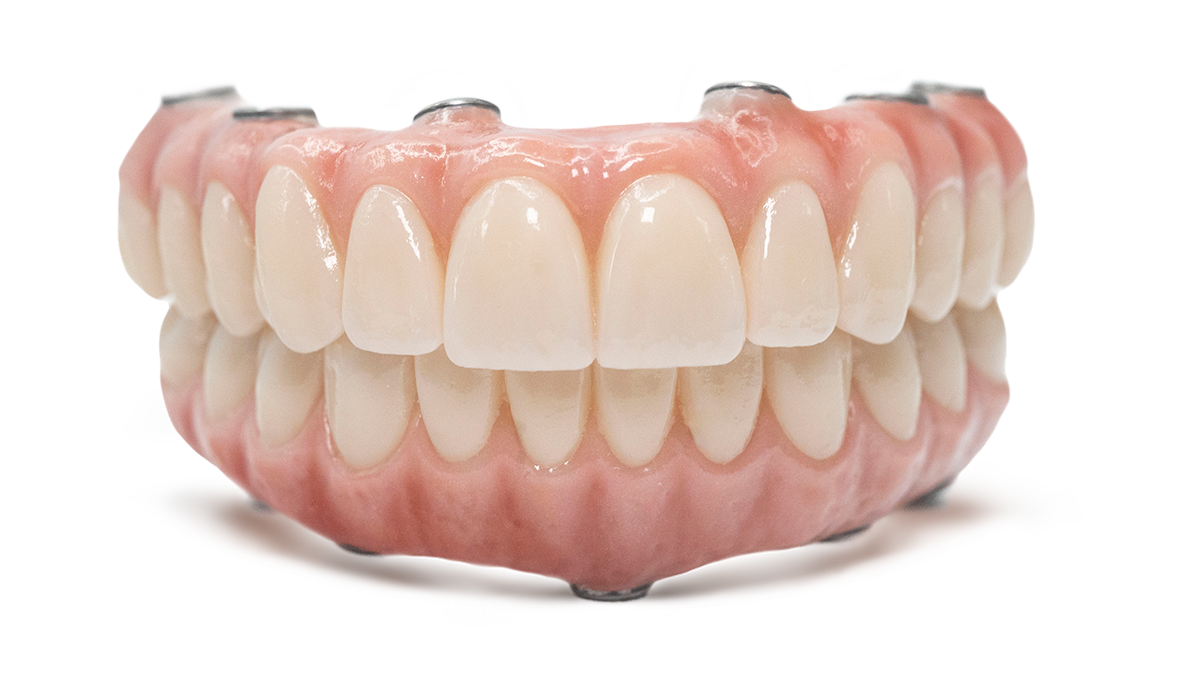

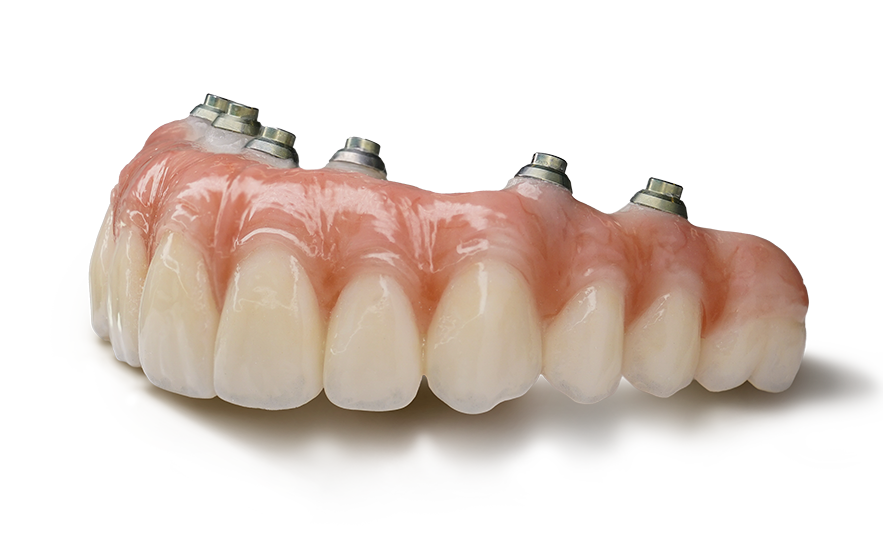

The TLZ-IB full arch zirconia implant-supported bridge represents a sophisticated approach to comprehensive oral rehabilitation, offering clinicians two distinct fabrication options to meet varying patient needs and clinical scenarios.
TLZ-IB Monolithic
The monolithic zirconia version provides a single-material restoration that eliminates the risk of delamination while delivering exceptional strength and natural esthetics through advanced translucent liquid ceramics, particularly beneficial for maxillary restorations where aesthetic demands are paramount.
TLZ-IB Layered
Alternatively, the layered ceramic version combines a zirconia framework with meticulously applied ceramic layers, allowing for enhanced characterization and customized aesthetic outcomes while maintaining the inherent strength and biocompatibility of the zirconia core.
Both configurations (monolithic and layered) require only 10mm of vertical space, work seamlessly with all major implant systems, and incorporate ROE's precision milling technology and prototype try-in process to ensure predictable results and optimal patient satisfaction.


Clinical Benefits of the TLZ-IB
Monolithic Zirconia TLZ-IB
- Structural Integrity: Eliminates delamination risk between materials, superior fracture resistance due to uniform material properties throughout, providing an overall reduction in maintenance requirements.
- Clinical Efficiency: Streamlined adjustment procedures during delivery and simplified repair protocols when needed reduce overall chair time.
- Patient Comfort: Smooth, non-porous surface, along with excellent biocompatibility, reduces plaque accumulation and simplifies home care.
Layered Zirconia TLZ-IB
- Enhanced Esthetics: Superior color depth and translucency through strategic ceramic layering, including incisal translucency and surface texture. This can create a more lifelike appearance, particularly in the esthetic zone
- Clinical Versatility: Opportunity for chairside adjustments and refinements to optimize esthetics, including the ability to mask challenging underlying implant positions or angulations
- Functional Advantages: Better stress distribution through engineered layer thickness variations
Shared Clinical Benefits
Both configurations eliminate common prosthetic failures including denture tooth loss, acrylic fractures, and component wear while requiring minimal vertical space (10mm) for conservative surgical approaches and universal implant compatibility.
Product Specifications

Application | All patient types |
Substructure | Full Zirconia |
Materials | • Full zirconia • MiYO® liquid porcelain • Titanium cylinders |
Process | • Submit flask or duplicate prosthetic • Prototype Try-in • Final |
Prosthetic Design | FP3 / FP2 / FP1 |
Minimum vertical space | 10mm. Consider adding metal substructure if vertical space is less than 10mm. |
No. of patient visits | 3-6 |
Esthetic Quality | ★★★★★ |
Wear | ★★★★★ |
Price | $$$$ |
Download Your Free Ultimate Restorative Guide Now
What You'll Gain In This 70-Page Guide:
- Step-by-step instructions for ten digital and analog restorative protocols
- Complete understanding of all necessary patient record requirements on a per-patient scenario
- Detailed comparison charts for informed decision-making between protocols
Available in digital or print format (free mailing included).

Video Resources
What are Two Options for Screw Retained Implant Crowns?
ROE Dental Laboratory’s Full Arch Fixed Prosthetic Options
Full Arch Options: Strength Guide
Full Arch Fixed - Product Comparison
Esthetics | Wear | Price | Prosthetic Design | Substructure | Materials | |
---|---|---|---|---|---|---|
TLZ-IB Zirconia | ★★★★★ | ★★★★★ | $$$$ | FP3/FP2/FP1 | Full Zirconia | • Full zirconia • MiYO liquid porcelain • Titanium cylinders |
TLZ-IB w/ Metal Substructure | ★★★★ | ★★★★★ | $$$$$ | FP3 | Titanium | • Full zirconia • MiYO liquid porcelain • Titanium substructure |
NobelProcera® | ★★★★★ | ★★★★★ | $$$$ | FP3/FP2/FP1 | DOCERAM Nacera Pearl Zirconia | • DOCERAM Nacera Pearl Zirconia • MiYO liquid porcelain |
Graphenano Nanoceramic | ★★★★★ | ★★★★ | $$$$ | FP3 | Trilor | • Crystal Ultra teeth with Trilor Bar |
