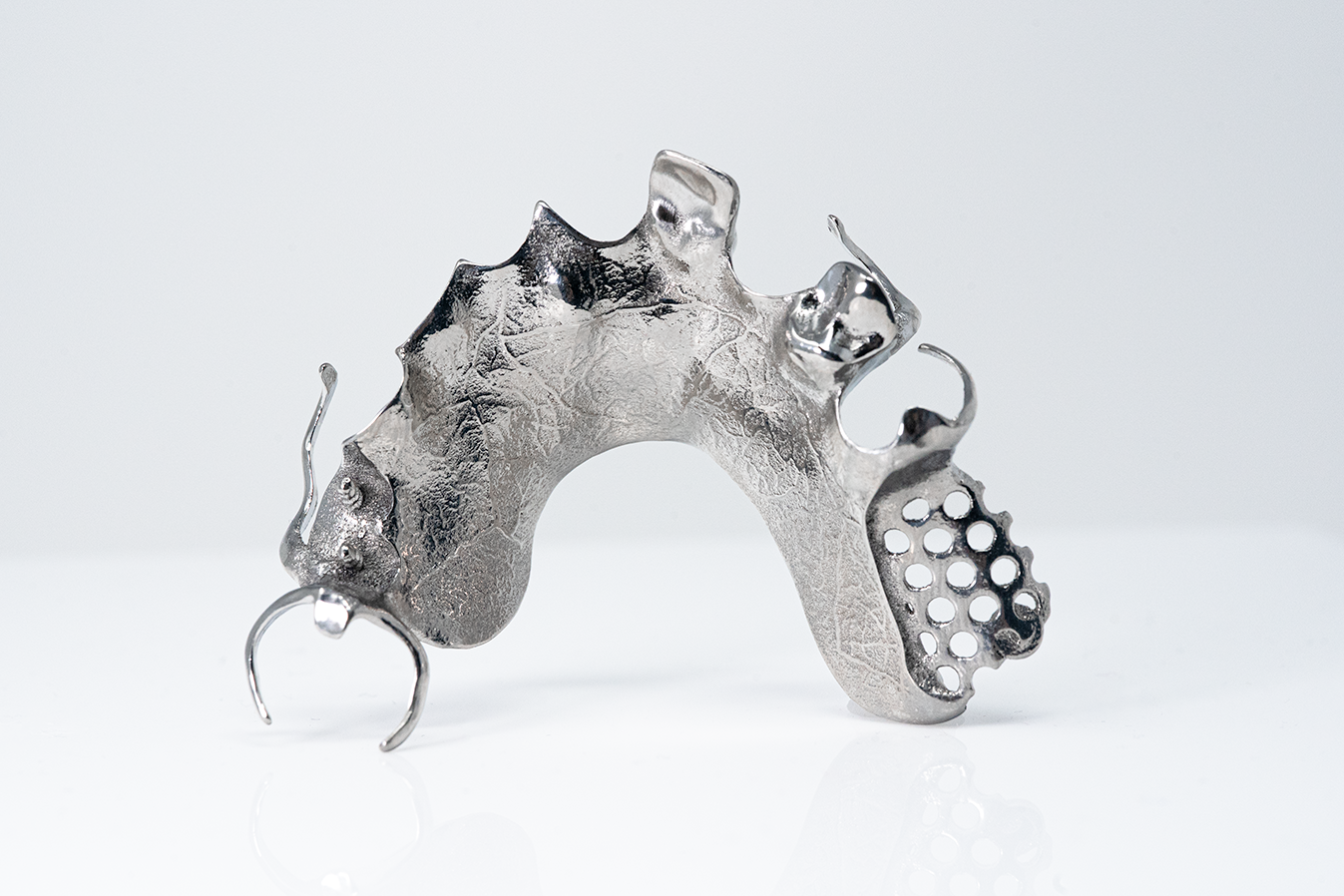

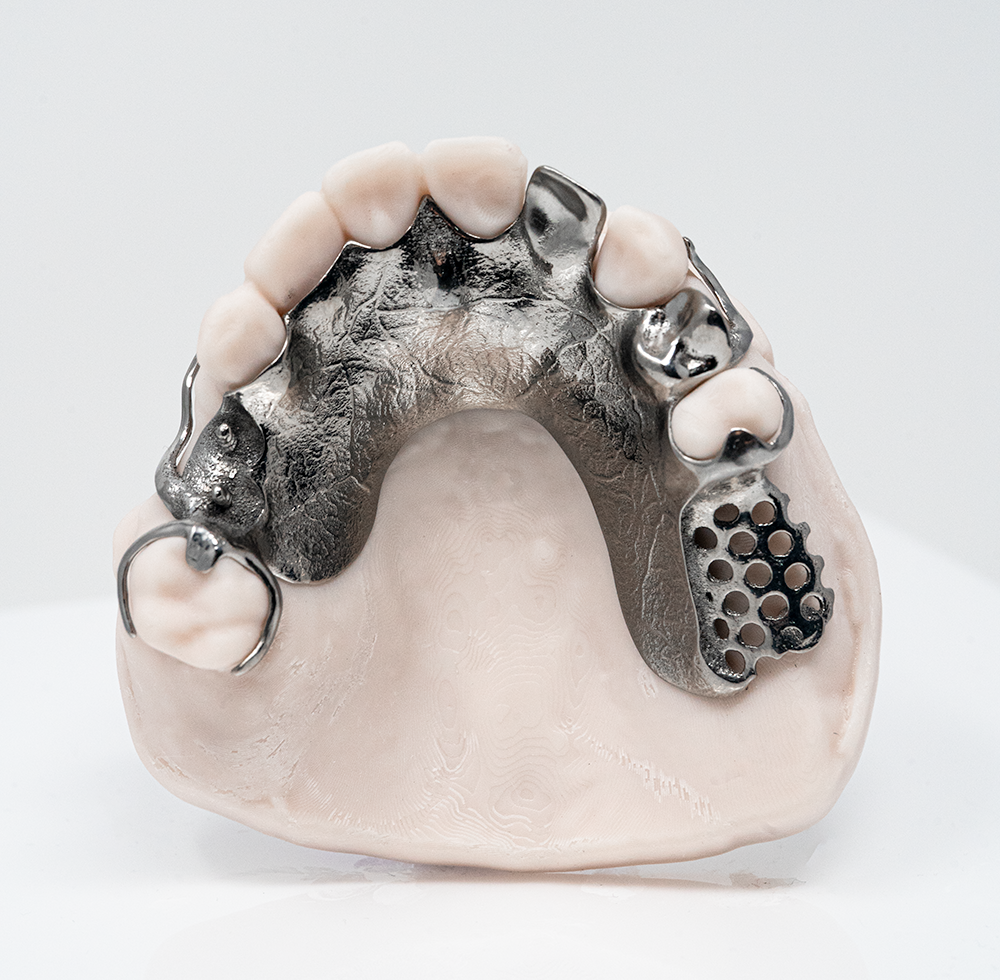

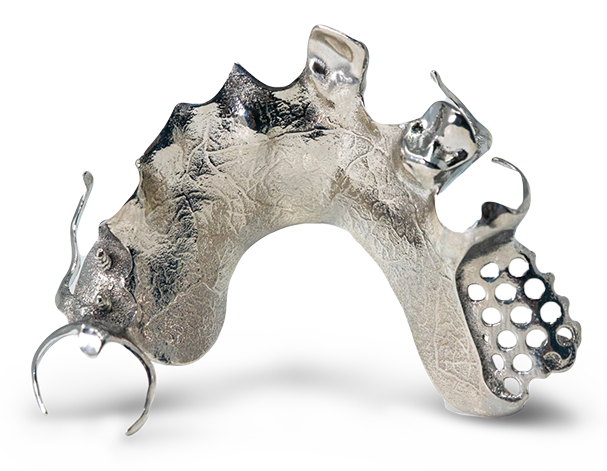

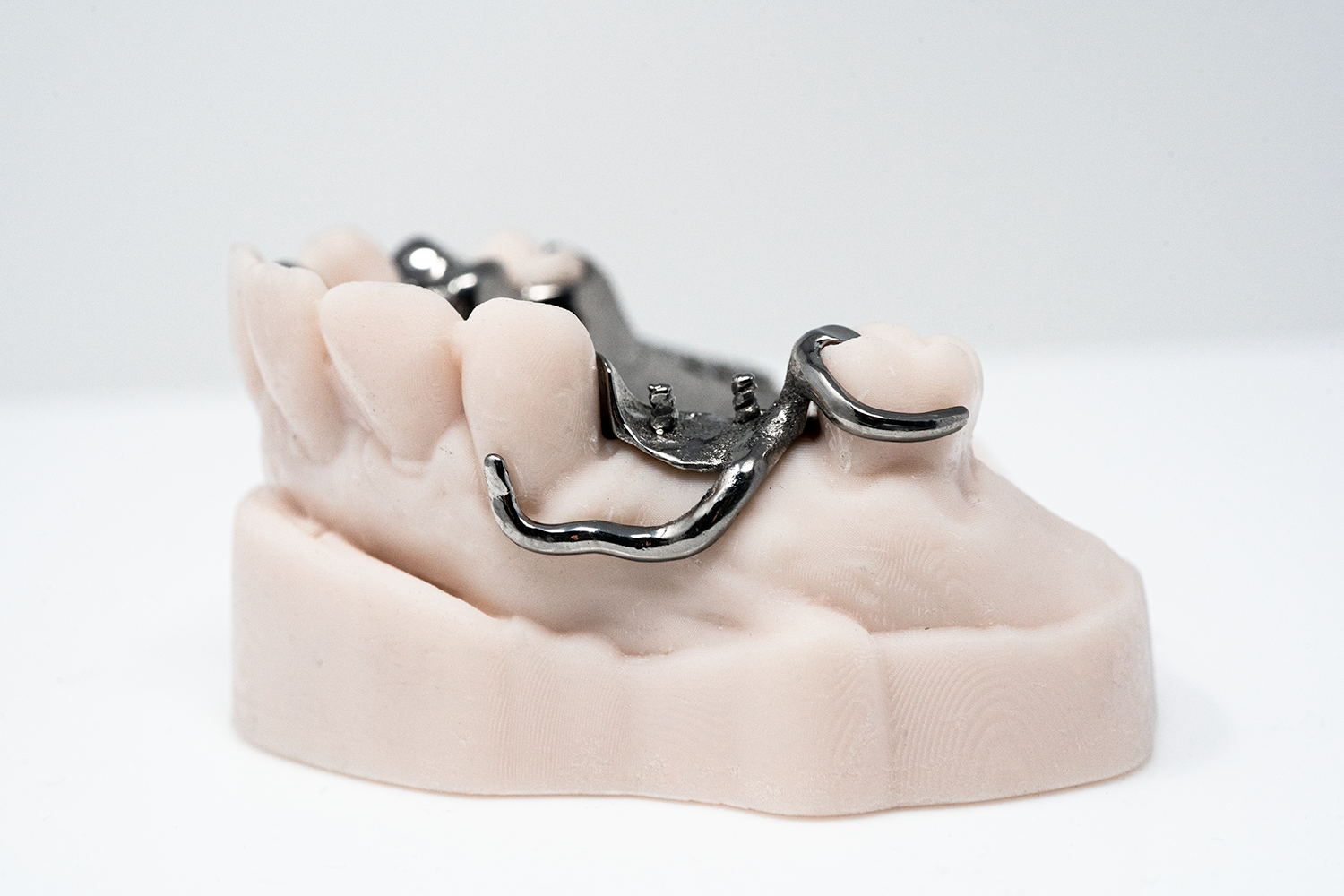

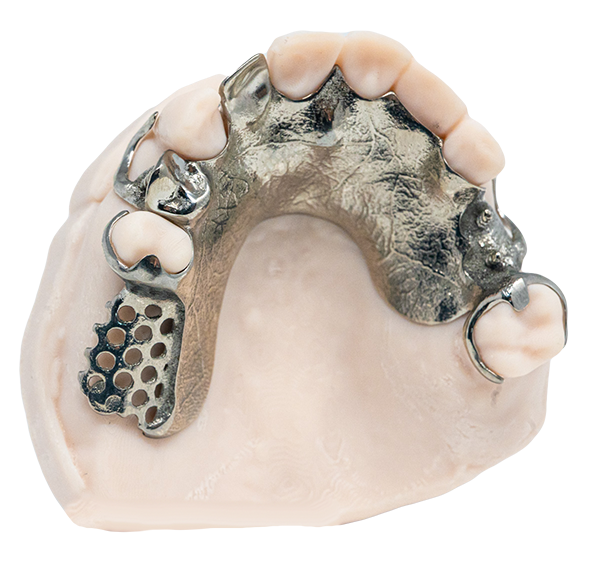

Titanium partial dentures are removable dental prosthetics made from medical-grade titanium that replace missing teeth while providing exceptional strength, biocompatibility, and comfort.

Unlike traditional chrome-cobalt partials, titanium partials are significantly lighter, thinner, and more comfortable for patients while maintaining excellent durability.

Titanium partials are:

• Approximately 60% lighter than traditional chrome-cobalt frameworks,
• Allows for thinner designs (as thin as 0.3mm in some areas) without compromising strength.
• They offer superior biocompatibility, are completely nickel-free, and
• Provide excellent aesthetics with their natural grayish color that blends well with gingival tissues.

In side-by-side comparisons, patients consistently choose titanium over chrome-cobalt frameworks based on comfort alone.

The partials are made from a Type 4 titanium alloy (Ti-6Al-4V ELI) - the same biocompatible material used in dental implants.

Pure titanium would be too flexible for dental applications, so small amounts of aluminum and other elements are added to create the alloy.

This is the standard dental alloy used in implants and now in removable prosthetics.

The material is FDA-approved for intraoral use and meets all required specifications for dental applications.

The titanium frameworks follow the same design specifications as chrome-cobalt frameworks in terms of dimensions.

Currently, the same design principles are applied to both materials, with major connectors typically ranging from 0.4-0.6mm.

However, research is ongoing, and with further testing and potentially artificial intelligence applications, future designs may be optimized specifically for titanium's unique properties.

For now, dentists can use the same rest preparations, proximal plate designs, and clinical protocols they're familiar with from chrome-cobalt frameworks.

According to a 2024 study from The Saudi Dental Journal, titanium has higher resistance to deformation than chrome-cobalt, which leads to better long-term retention.

This is particularly evident after high cycles of insertion/removal (equivalent to approximately 3.5 years of clinical use). The improved resistance to deformation means titanium frameworks maintain their fit and retention properties much better over time.

While the fracture resistance of titanium appears to be at least as good as chrome-cobalt, there is no conclusive evidence that it is significantly superior in this specific aspect.

However, the combination of comparable fracture resistance with significantly lighter weight provides a noticeable clinical advantage.

The manufacturing capabilities and production turnaround times for titanium and chrome-cobalt are essentially the same using the SLM process, with both materials capable of being produced within a three-day timeframe while ensuring fully polished structures.

 Yes, titanium actually offers superior bonding with acrylics compared to chrome-cobalt.

When chemical treatments are used to prepare the metal surface, the bonding effect is much higher with titanium than with chrome-cobalt.

This enhanced acrylic-to-metal bond provides better long-term durability for the prosthesis and reduces the risk of acrylic separation from the framework - a significant advantage for both labs and patients.

The titanium partials are manufactured using a digital workflow:

1. The case is scanned or a digital impression is received (from a lab scanner or an intraoral camera)
2. The framework is designed using specialized CAD software
3. The framework is produced through SLM (Selective Laser Melting) technology
4. The framework undergoes finishing and polishing
5. Traditional denture teeth are set and processed to the framework

SLM is an additive manufacturing process where titanium powder is precisely melted by a high-power laser, layer by layer, according to the digital design.

This technology creates a perfect organization of the crystal structure in the metal, unlike traditional casting, where crystals form in a disorganized manner.

The controlled crystal structure leads to superior physical properties and dramatically reduces the risk of fractures compared to cast frameworks.

Traditional casting involves transforming metal from solid to liquid and back to solid again, which creates a disorganized crystal structure in the metal and contributes to potential weakness and fracture risk.

The SLM process for titanium starts with titanium powder that is selectively melted by a laser, creating a perfect organization of the crystal structure.

This controlled crystallization results in superior physical properties, including better flexibility without fracture and maintained retention over time.

This fundamental difference in the manufacturing process is what gives the titanium frameworks their exceptional clinical performance.

The SLM manufacturing process has been studied in collaboration with McGill University using electron microscopy to examine the crystal structure of the metal.

This research confirmed that the controlled crystal formation during laser melting creates superior physical properties compared to cast metals.

SLM (Selective Laser Melting) manufacturing for titanium offers several advantages over milling:

1. Crystal structure: SLM maintains a smaller and more organized crystal structure compared to milling, leading to superior physical properties. This controlled crystallography is equivalent to the benefits seen with SLM cobalt-chrome.
2. Waste reduction: The additive nature of SLM produces significantly less waste compared to the subtractive process of milling, where much of the original titanium block becomes scrap.
3. Production efficiency: SLM allows for production turnaround times as short as three days for a fully polished framework, making it commercially viable in ways that milled titanium frameworks never achieved.
4. Design freedom: SLM can produce complex geometries and ultra-thin sections that would be difficult or impossible to achieve through milling.

While milled titanium frameworks have existed for years and offer excellent patient comfort, they remained commercially impractical due to high production costs. 3DRPD's innovation was applying SLM technology to titanium powder, making this premium material accessible at a reasonable price point.

Patients experience:

• Significantly lighter weight (60% less than chrome-cobalt)
• Enhanced comfort due to thinner frameworks
• Excellent biocompatibility with no risk of nickel allergies
• Better thermal properties (doesn't conduct heat/cold as readily)
• Natural grayish appearance that blends well with gingival tissues
• Higher-quality fit with precise CAD/CAM manufacturing
• Superior retention that maintains effectiveness over time (only 9% reduction in retention after 6,000 insertion/removal cycles compared to 75% reduction in traditional frameworks)
• Much lower risk of framework fracture due to the optimized crystal structure of the metal

Yes, titanium is considered one of the most biocompatible materials available in dentistry.

There are virtually no documented cases of true titanium allergies in the dental literature.

While older chrome-cobalt alloys that contained nickel frequently caused allergic reactions, even modern chrome-cobalt alloys (without nickel) can occasionally trigger sensitivities in some patients.

For patients with known metal sensitivities or concerns about metal allergies, titanium partials represent the safest choice available and offer complete peace of mind.

There are several factors contributing to improved patient comfort with CAD/CAM titanium partials:

1. Precision fit: In traditional partials, minor orthodontic tooth movement often occurs as teeth adjust to the framework over the first few weeks of wear. With highly precise CAD/CAM frameworks, this adjustment period is minimized, resulting in better initial comfort.
2. Anatomical duplication: Digital design allows for exact replication of palatal anatomy rather than hand-waxed patterns, creating a more natural feel for patients.
3. Lightweight properties: The significantly lighter weight of titanium (60% lighter than chrome-cobalt), combined with the precise fit, creates a sensation where patients feel like they "have nothing in their mouth."

In pilot studies comparing CAD/CAM frameworks to traditional frameworks, more than 80% of patients preferred the CAD/CAM option after trying both.

While large-scale clinical studies are still developing in this area, the consistent patient preference indicates a significant comfort advantage.

According to a study published in The Saudi Journal for Dental Research (2016) measured bone loss around abutment teeth and found that titanium frameworks apply less pressure on teeth compared to traditional frameworks.

The superior retention properties of titanium frameworks result in less movement of the prosthesis during function, which leads to:

1. Better stabilization of abutment teeth
2. Reduced "jiggling" effects that can contribute to bone resorption
3. Diminished bending forces on abutment teeth

The physics behind this advantage is directly related to titanium's optimal elasticity combined with the controlled crystalline structure formed during the SLM process.

By reducing micro-movements and distributing forces more evenly, titanium frameworks help preserve the periodontal support structures around abutment teeth over the long term.

No definitive studies show that titanium attracts more or less plaque than other dental materials. The same titanium alloy has been used extensively in dental implants for many years without significant plaque-related issues.

While there isn't specific research on plaque accumulation on 3D printed titanium frameworks, the extensive use of similar titanium in implantology suggests that plaque accumulation is comparable to other dental materials.

The primary advantage from a periodontal health perspective comes from the improved retention characteristics rather than any inherent plaque-resistant properties of the material itself.

Titanium clasps offer excellent flexibility and retention characteristics that are equal to or better than chrome-cobalt clasps.

Flexibility tests, utility tests, and retention tests have shown titanium to perform slightly better than chrome-cobalt in these areas.

This means dentists can expect reliable retention while benefiting from the other advantages of titanium.

The ductility (ability to be bent without breaking) of titanium is excellent, giving dentists confidence when making minor adjustments to clasps.

With proper care, titanium partials have an excellent lifespan. ROE provides a 5-year warranty against framework fracture - something not typically offered with traditional cast partials.

Confidence comes from rigorous testing and understanding of the crystal structure formed during the SLM process.

Studies show that after 6,000 cycles of insertion/removal (equivalent to a typical patient's usage), traditional frameworks lose up to 75% of their retention, while titanium frameworks lose only about 9%.

Patients typically experience a shorter and more comfortable adaptation period with titanium partials compared to traditional frameworks:

1. Initial comfort: Due to the precise fit of CAD/CAM frameworks, patients often report immediate comfort with minimal adjustment period. With traditional partials, patients often experience an uncomfortable period of 1-2 weeks as minor tooth movements occur to accommodate the framework.
2. Reduced awareness: The lightweight nature of titanium (60% lighter than chrome-cobalt) means patients are less conscious of the prosthesis in their mouth from the beginning.
3. Psychological acceptance: The combination of better fit, lighter weight, and more natural feel against palatal tissues typically results in faster psychological acceptance of the prosthesis as "part of them" rather than a foreign object.

For patients who have previously worn traditional partial dentures, the improvement in comfort and adaptation is often immediate and dramatic when switching to titanium frameworks.

While all partial denture cases can benefit from titanium, certain clinical situations show particular advantages:

1. Maxillofacial prosthetics: Studies show that universities and specialists in maxillofacial prosthetics particularly appreciate titanium frameworks because they are easy to rebuild, lightweight, and build much better prostheses" compared to cobalt-chrome for complex reconstructions like mandibular rami.
2. Patients with extensive partial frameworks: The weight difference becomes more noticeable and significant for patients with larger frameworks, making titanium an especially good choice for extensive partial dentures.
3. Patients with a history of framework fractures: The superior mechanical properties of SLM titanium make it an excellent choice for patients who have experienced fractures with previous frameworks.
4. Patients with periodontal concerns: The improved retention stability helps minimize damaging forces on abutment teeth, making titanium an ideal choice for patients with compromised periodontal support.

The requirements are similar to traditional partial dentures.

Quality impressions capturing all necessary anatomical details are essential. Digital scans are preferred when available.

For optimal results, clearly communicate desired clasp locations and design preferences.

ROE's design team will review each case and may recommend slight modifications based on the unique properties of titanium.

Yes, most existing partial designs can be adapted for titanium fabrication. However, the design may be optimized to take advantage of titanium's unique properties, such as using thinner connectors or alternative clasp designs.

For in-office touch-up polishing, dentists can use the same polishing kits, rubber points, and rubber wheels they already use for other titanium components, such as implant bars.

No special equipment is required beyond what most offices already have for adjusting and polishing other dental metals.

Dentists who routinely work with implant components will find the polishing process very familiar when working with titanium partials.

No changes to clinical procedures are required when prescribing titanium partials. Dentists can continue to use:

• The same impression techniques (conventional or digital)
• The same rest preparations
• The same design principles for clasps and major connectors
• The same chairside adjustment techniques (with appropriate burs)

The workflow remains identical from the dentist's perspective, with all the material-specific considerations being handled by the laboratory.

This makes titanium partials an easy upgrade to offer without requiring any practice modifications or additional training.

Yes, all the same attachment and clasp retention systems that work with chrome-cobalt frameworks can be used with titanium frameworks.

The only difference is in the soldering technique used to connect attachments to titanium, which is handled by the laboratory technicians.

From the dentist's perspective, you can prescribe the same attachment systems you're familiar with, and there are no limitations in terms of compatibility with titanium frameworks.

Yes, titanium partials can be repaired and modified just like chrome-cobalt frameworks.

The only consideration is that technicians need to use the appropriate setup and techniques specific to titanium when performing such additions or repairs.

For repairs or additions, the partial should be sent back to ROE Dental Lab where our technicians are fully trained in working with titanium frameworks.

There are virtually no contraindications for titanium partials.

They're an excellent option for patients with metal allergies since they contain no nickel, chromium, or cobalt, which are common allergens in traditional alloys.

The only area where complete clinical data is still developing is for cases involving full occlusal surface reconstruction (such as full inlays attached to partials) in patients with severe bruxism.

However, extrapolating from the extensive data on titanium use in implantology and maxillofacial prosthetics, no significant limitations are anticipated even in these cases.

If patients use cleaners containing bleach (such as Javex), the titanium surface can become discolored, turning black.

This was discovered during early client testing when a patient used such a cleaner on their partial, which fortunately had not yet been delivered to the patient.

The discoloration is not due to oxidation (titanium oxidizes within 0.5 seconds after production and then remains stable) but rather a chemical reaction that affects the surface.

For this reason, patients should be explicitly instructed to avoid bleach-containing cleaners and to remove their partials during any teeth whitening procedures that involve bleaching agents.

If a patient loses or damages their titanium partial, a replacement can be fabricated much more quickly than starting from scratch.

ROE assigns a unique barcode to every framework they produce and keeps all design files indefinitely.

This means that if a replacement is needed, no new impression is required - ROE can simply reproduce the original framework from the stored digital file.

The patient would only need to come in for try-in and delivery of the completed prosthesis, saving an appointment in the replacement process.

This digital tracking system significantly improves the patient experience in case of lost or damaged partials.

Present titanium partials as a premium alternative to traditional partials, emphasizing:

• Significantly improved comfort due to lighter weight (60% lighter) and thinner design
• Excellent biocompatibility (especially for patients with metal sensitivities)
• Superior aesthetics with less visible metal
• Modern CAD/CAM precision manufacturing
• Long-term durability and value
• Psychological comfort factor that improves adaptation and satisfaction

For patients particularly concerned about comfort, aesthetics, or metal allergies, titanium partials should be presented as the primary recommendation.

When patients were given both options to try, they consistently preferred the titanium framework based on comfort alone.

Patients often perceive titanium as a premium material for several reasons:

1. Familiarity with medical applications: Most patients are aware that titanium is used in high-quality medical devices like hip replacements, surgical screws, and dental implants. When they hear the same material is being used for their partial denture, they immediately associate it with medical-grade quality.
2. Psychological reassurance: Patients don't question titanium - they feel very secure when you talk about titanium in the mouth or body compared to cobalt-chrome. The material itself carries a perception of safety and quality.
3. Transparency of composition: Unlike some cobalt-chrome alloys that may contain various undisclosed elements, titanium alloys have well-known compositions. This transparency further enhances patient confidence in the material.

The perception of titanium as a premium, medical-grade material helps patients justify the investment and increases their satisfaction with the final prosthesis.

When discussing titanium partials with patients, doctors can highlight the periodontal health benefits in patient-friendly language.

One significant advantage of titanium partials is their ability to help preserve the bone around your supporting teeth.

Traditional casted partials can sometimes allow small movements that, over time, may lead to bone loss around those teeth.

The titanium partial's excellent fit and stability minimize this movement, helping to keep your supporting teeth healthier for longer.

This is especially important for maintaining your oral health in the long term.

This conversation point can be particularly effective with patients who have existing periodontal concerns or who have experienced issues with previous partial dentures.

Emphasizing the long-term health benefits can help justify the premium investment in titanium frameworks.

The cleaning process for titanium partials is similar to that for chrome-cobalt, with one critical exception: patients must avoid cleaners containing bleach (such as Javex).

Unlike chrome-cobalt, titanium reacts differently to bleach-containing products.

Titanium does not continuously oxidize over time - it forms a stable oxide layer almost immediately after manufacturing.

When exposed to bleach, rather than further oxidizing, the titanium surface can become discolored and turn black due to a chemical reaction that affects the surface.

Key cleaning instructions for patients:

• Regular cleaning with a toothbrush and regular toothpaste is recommended
• Patients should remove their titanium partials during teeth whitening procedures that involve bleaching agents
• Standard denture cleaners without bleach are safe to use
• Abrasive cleaners that could scratch the surface should be avoided

Patients should be explicitly informed about these considerations to prevent discoloration of their titanium frameworks.
