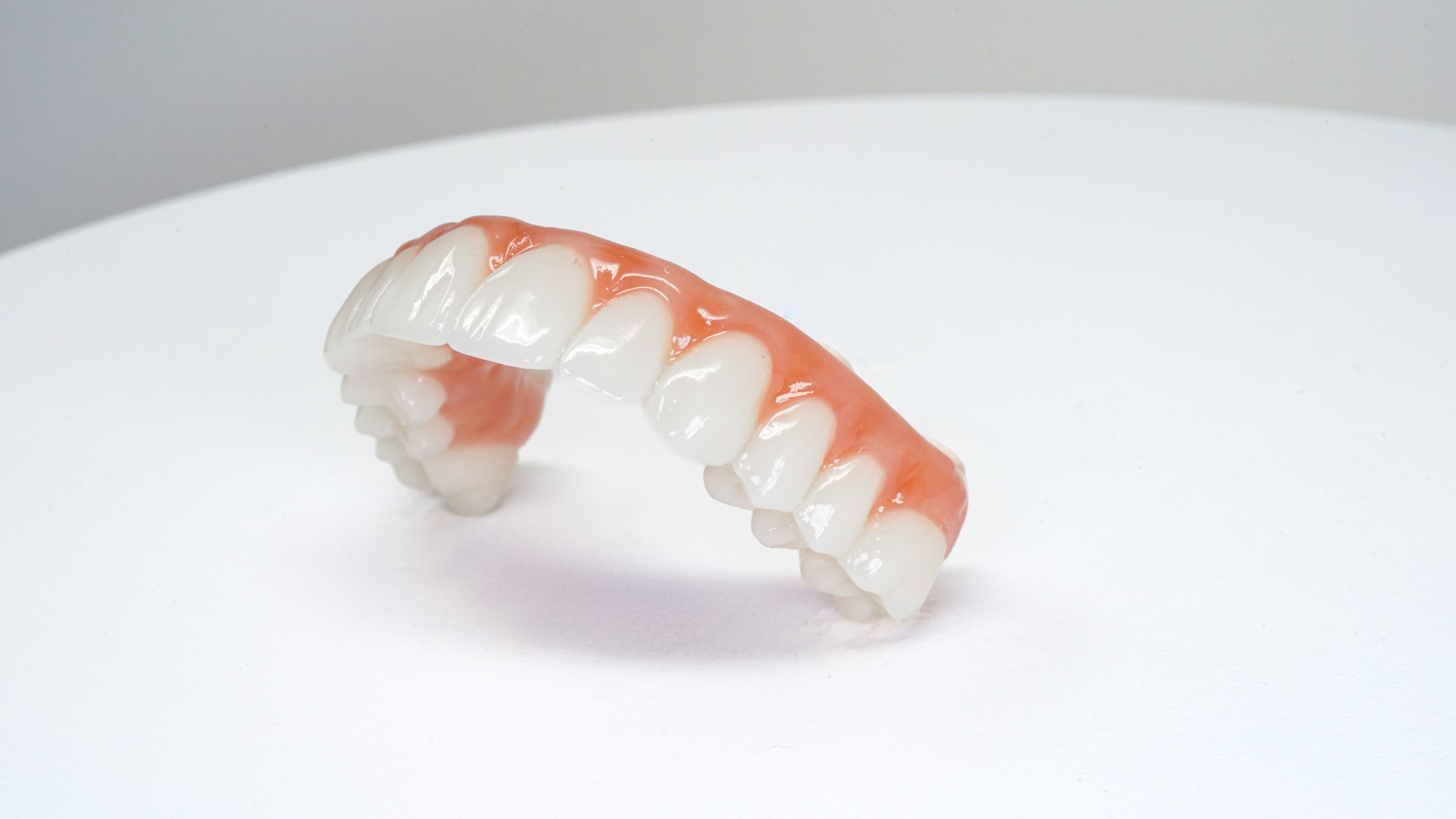

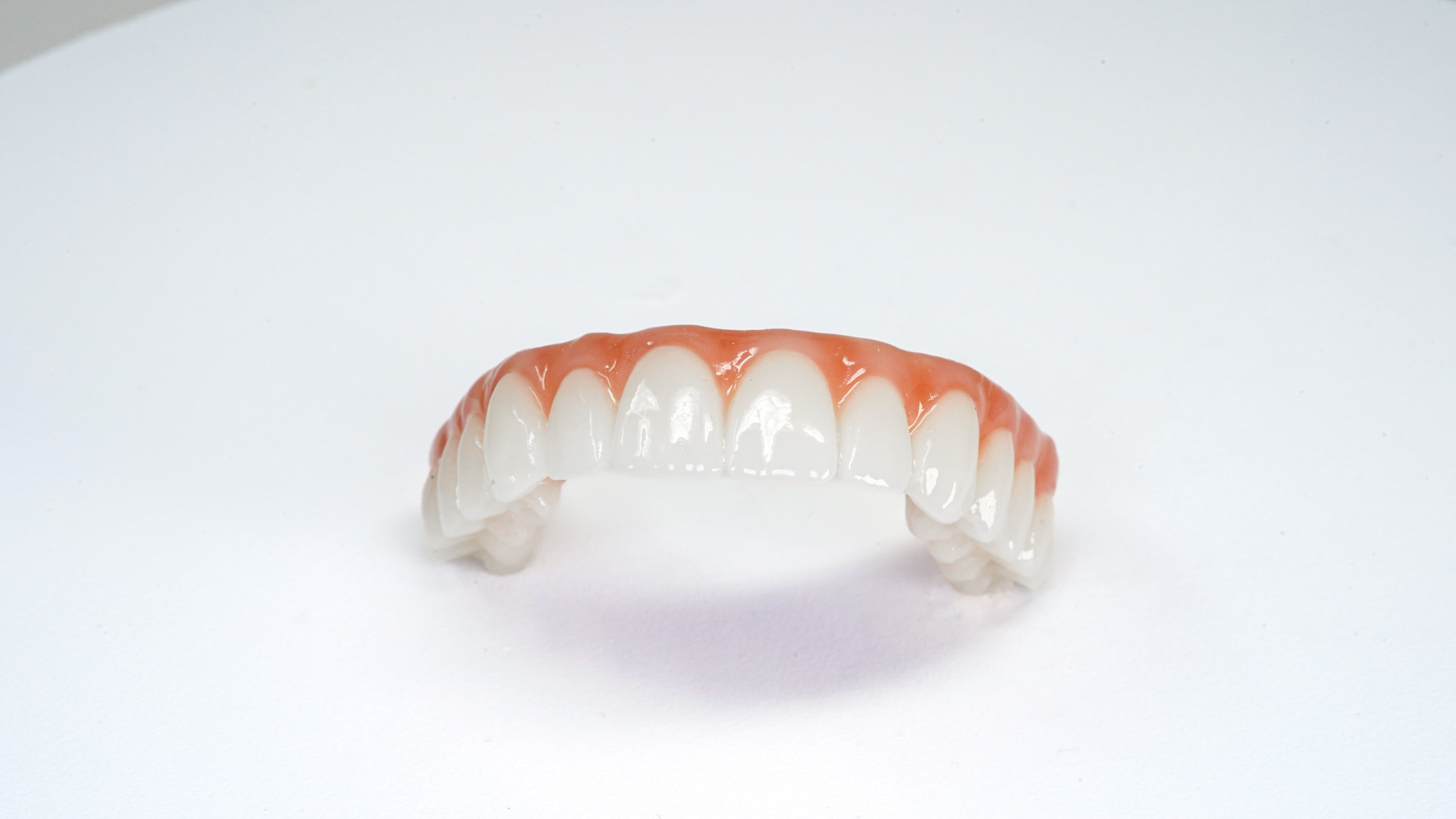

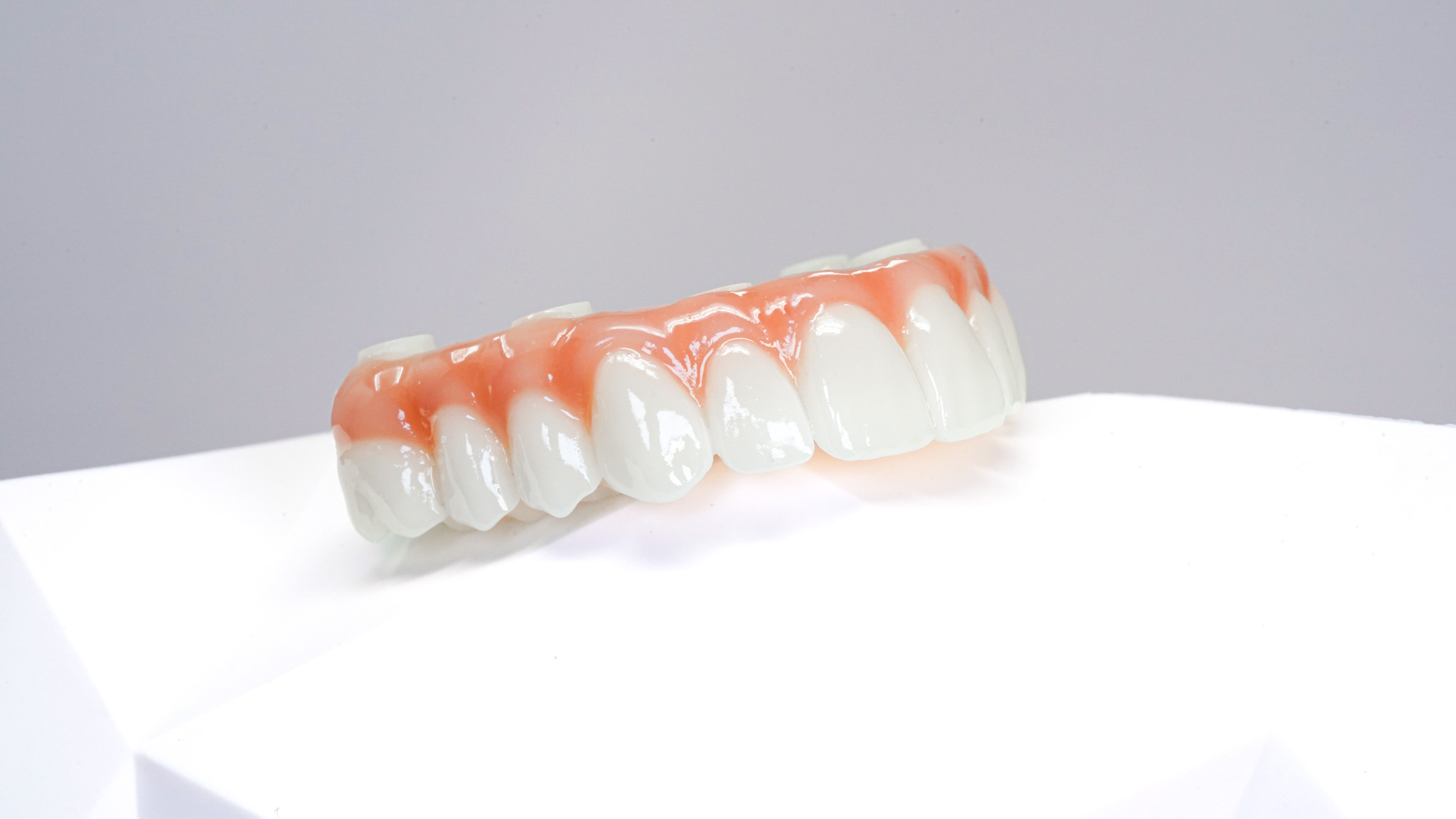

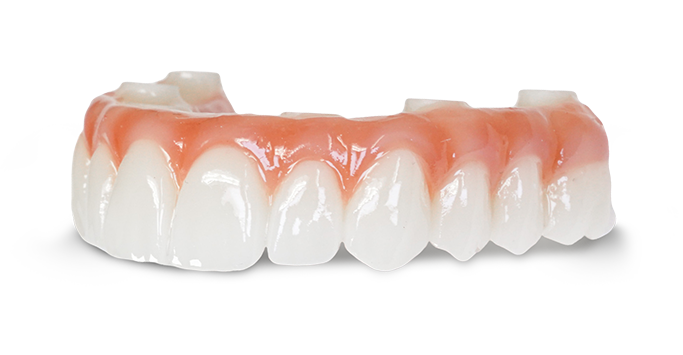

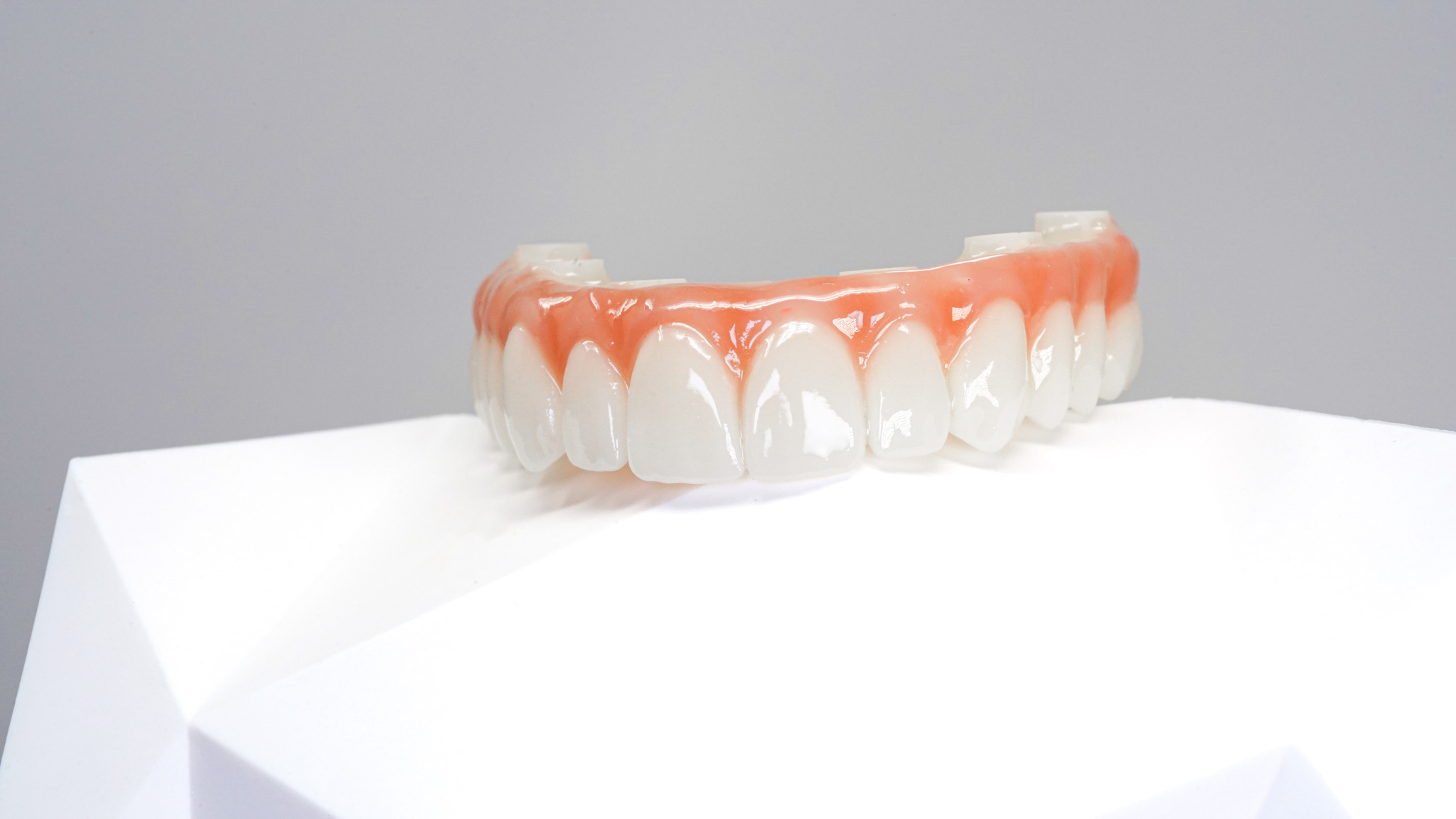

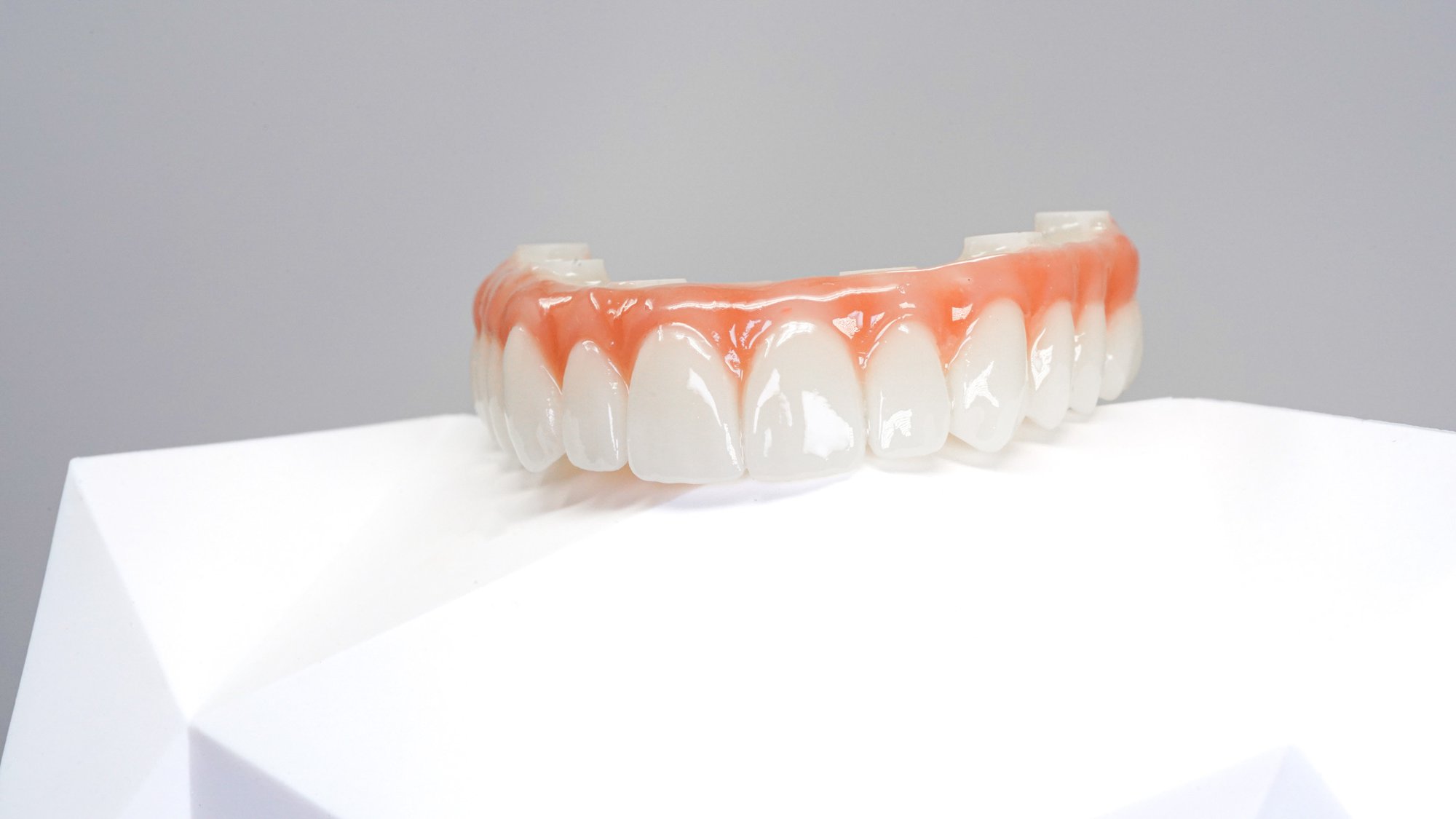

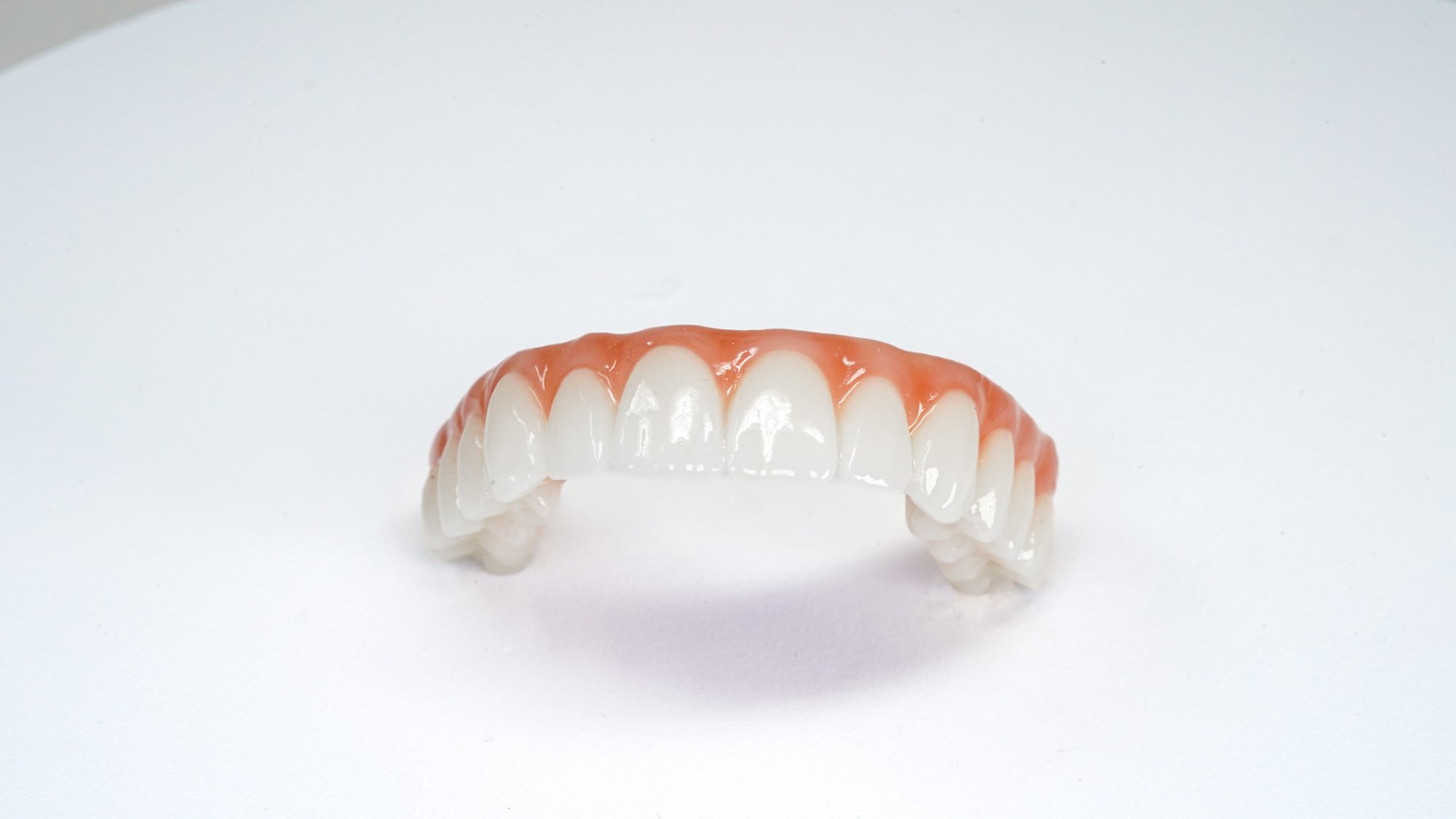

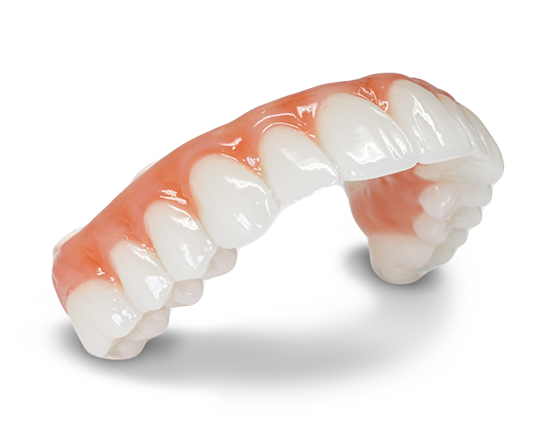

Ultra-Nano-IB (Milled Prosthetic on Trilor)

Full ArchTurnaround time – 11 Production DaysGenerally designed from an iJIG – 7 Lab Days and/or Printed Try-In – 7 Lab Days

Beautifully designed and milled teeth bonded to milled fiber-composite or titanium substructure bars. This material is highly esthetic, very strong and durable, offers a light-weight option with much less abrasive characteristics than zirconia and softer landing for the patient. This is the go-to for single and double arch implant supported arches.

  • Beautiful teeth milled from high-strength Crystal Ultra
  • Choose between strong hi-tech fiber-composite substructure
  • Titanium substructures are milled here at ROE, or can be ordered OEM from some implant companies
  • Light-weight design, adjustable, durable and low wear to the opposing
Ultra-Nano-IB with Trilor

Price:

Click here for pricing

11 Days

Lab Working Time

Rx’s

Submit Online | Download Rx Form

Delivery Calculator

Select your location, record type, and when you plan to send the case and we will give you the earliest date you should schedule your patient to come back. We recommend adding an additional day or two as we cannot account for issues with UPS, Fedex, or the Post Office. Click here for the complete Delivery Calculator for all products.

  • 2022-12-26
  • 2022-11-24
  • 2022-11-25
  • 2023-01-02
  • 2023-05-29
  • 2023-07-04
  • 2023-09-04
  • 2023-11-23
  • 2023-11-24
  • 2023-12-25

Product Family

Select Product

Record Type?

Your Location

Date Sending Case

Reset

Videos

Full Arch Fixed Options

Subscribe to ROE’s YouTube channel

Full Arch Options: Strength

Subscribe to ROE’s YouTube channel

Additional Information

Submit Rx Online

Scan Bodies Implant Systems

Download Rx

Implant / Attachment Sequence

Print UPS Label

CBCT Implant Planning Manual

Education

31 March 2023

Introduction to Stabili-Teeth™ CE Course

 Presenter: Dr. Carl Medgaus

Find out more »
$5500
ROE Dental Laboratory, 7165 E Pleasant Valley Rd
Independence, OH 44131 United States
+ Google Map
20 April 2023

All on X Grammetry – April 2023

 Presenters: Dr. Tarun Agarwal and Dr. Sully Sullivan

Find out more »
$3495
3D Nashville, 5015 Harpeth Drive
Nashville, TN 37027 United States
+ Google Map
01 June 2023

All on X Grammetry – June 2023

 Presenters: Dr. Tarun Agarwal and Dr. Sully Sullivan

Find out more »
$3495
3D Nashville, 5015 Harpeth Drive
Nashville, TN 37027 United States
+ Google Map

Product Comparison

Review our Full Arch Fixed Options

  • Application

    Application

  • Substructure

    Substructure

  • Materials

    Materials

  • Process

    Process

  • Prosthetic Design

    Prosthetic Design

  • Minimum Vertical space

    Minimum Vertical space

  • No. of Patient Visits

    No. of Patient Visits

  • Quality of Esthetics

    Quality of Esthetics

  • Wear

    Wear

  • Price

    Price
TLZ-IB

  • Application

    All patient types

  • Substructure

    Full Zirconia

  • Materials

    • Full zirconia
    • MiYO liquid porcelain
    • Titanium cylinders

  • Process

    • Submit flask or duplicate prosthetic
    • Prototype Try-in
    • Final

  • Prosthetic Design

    FP3/FP2/FP1

  • Minimum Vertical space

    12mm

  • No. of Patient Visits

    3 to 6

  • Quality of Esthetics

    ★★★★★

  • Wear

    ★★★★★

  • Price

    $$$$
TLZ-IB
with Ti substructure

  • Application

    • Extra strength needed
    • Less than 9-10mm space

  • Substructure

    Titanium

  • Materials

    • Full zirconia
    • MiYO liquid porcelain
    • Titanium substructure

  • Process

    • Submit flask or duplicate prosthetic
    • Prototype Try-in
    • Final

  • Prosthetic Design

    FP3

  • Minimum Vertical space

    10mm

  • No. of Patient Visits

    3 to 6

  • Quality of Esthetics

    ★★★★

  • Wear

    ★★★★★

  • Price

    $$$$$
NobelProcera®

  • Application

    • All, except heavy bruxers
    • Does not use metal copings
    • Must use Nobel-compatible multi-unit abutments

  • Substructure

    DOCERAM Nacera Pearl Zirconia

  • Materials

    • DOCERAM Nacera Pearl Zirconia
    • MiYO liquid porcelain

  • Process

    • Submit flask or duplicate prosthetic
    • Prototype Try-in
    • Final

  • Prosthetic Design

    FP3/FP2/FP1

  • Minimum Vertical space

    10mm

  • No. of Patient Visits

    3 to 6

  • Quality of Esthetics

    ★★★★★

  • Wear

    ★★★★★

  • Price

    $$$$
Ultra Nano

  • Application

    • All, except heavy bruxers
    • Light weight

  • Substructure

    Trilor

  • Materials

    • Crystal Ultra teeth with Trilor Bar

  • Process

    • Submit flask or duplicate prosthetic
    • Prototype Try-in
    • Final

  • Prosthetic Design

    FP3

  • Minimum Vertical space

    15mm

  • No. of Patient Visits

    3 to 6

  • Quality of Esthetics

    ★★★★★

  • Wear

    ★★★★

  • Price

    $$$$
Traditional Hybrid

  • Application

    • To match existing hybrid
    • Low bruxing clenching patients

  • Substructure

    Titanium Bar

  • Materials

    • Denture teeth
    • Processed acrylic
    • Titanium bar

  • Process

    • Custom Tray
    • Bite block fit jig
    • Set-up
    • Set-up on bar
    • Final

  • Prosthetic Design

    FP3

  • Minimum Vertical space

    17mm

  • No. of Patient Visits

    5 to 7

  • Quality of Esthetics

    ★★★★

  • Wear

    ★★★

  • Price

    $$$$

External Resources

Prosthodontic Options

[table id=10 /]
From Misch CE. Bone classification training keys. Dent Today. 1989;8:39-44.
