IPS e.max® Layered



At ROE, IPS e.max® layered restorations combine proven lithium disilicate cores with hand-layered porcelain, allowing our skilled ceramists to create complex characterizations, translucency variations, and intricate color matching that replicate natural tooth optical properties.

While requiring more lab time than monolithic options, these crowns offer unmatched versatility for challenging anterior aesthetic cases, particularly single crowns in the high-smile-line, or complex shade matching scenarios.

We accept both conventional and digital impressions with the same streamlined workflow as our other options.

The combination of strong lithium disilicate substructure with artistic porcelain layering makes IPS e.max layered crowns ideal when clinical success depends on both reliable strength and the highest level of aesthetic refinement.

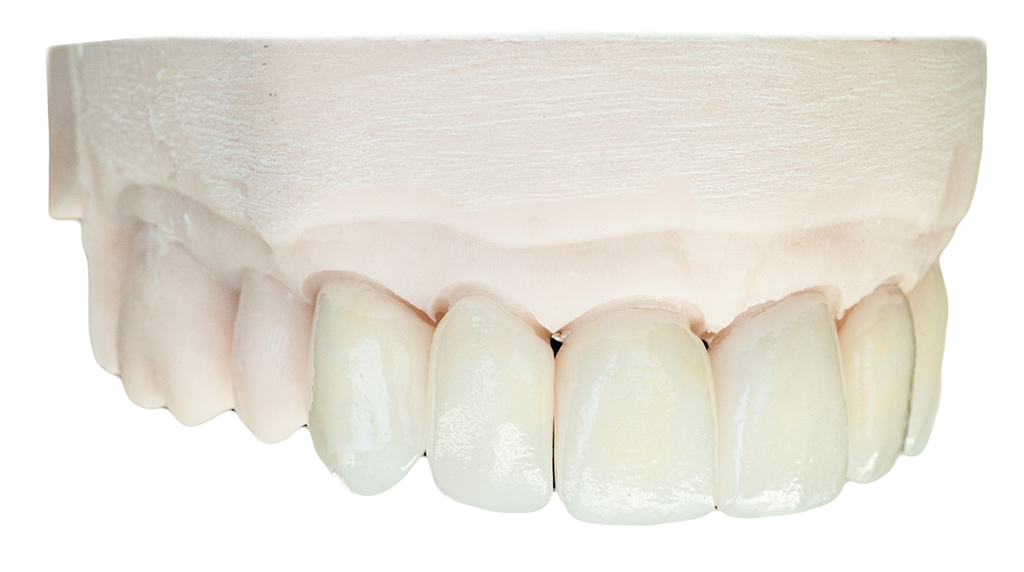

e.max Layered Hero
e.max Layered@0.5x

Clinical Benefits of an IPS e.max Layered Crown

  • Ultimate Aesthetic Customization – Hand-layered porcelain allows complex characterizations and intricate color matching impossible with monolithic designs
  • Natural Optical Properties – Layering technique replicates subtle color gradients, translucency variations, and surface textures of natural teeth
  • Superior Shade Matching – Artistic flexibility enables precise matching to adjacent teeth in challenging aesthetic scenarios
  • High-Smile-Line Excellence – Ideal for anterior cases where exceptional cosmetic results are critical for patient satisfaction
  • Proven Core Strength – Lithium disilicate substructure provides 360-400 MPa flexural strength for reliable structural integrity
  • Complex Case Solutions – Perfect for single anterior crowns requiring seamless integration with existing natural dentition
  • Flexible Design Options – Allows modification of surface texture, staining, and characterization based on patient needs
  • Reliable Clinical Performance – Combines time-tested lithium disilicate technology with proven porcelain layering techniques
  • Patient Confidence – Exceptional natural appearance enhances patient self-esteem and satisfaction with treatment

Product Specifications

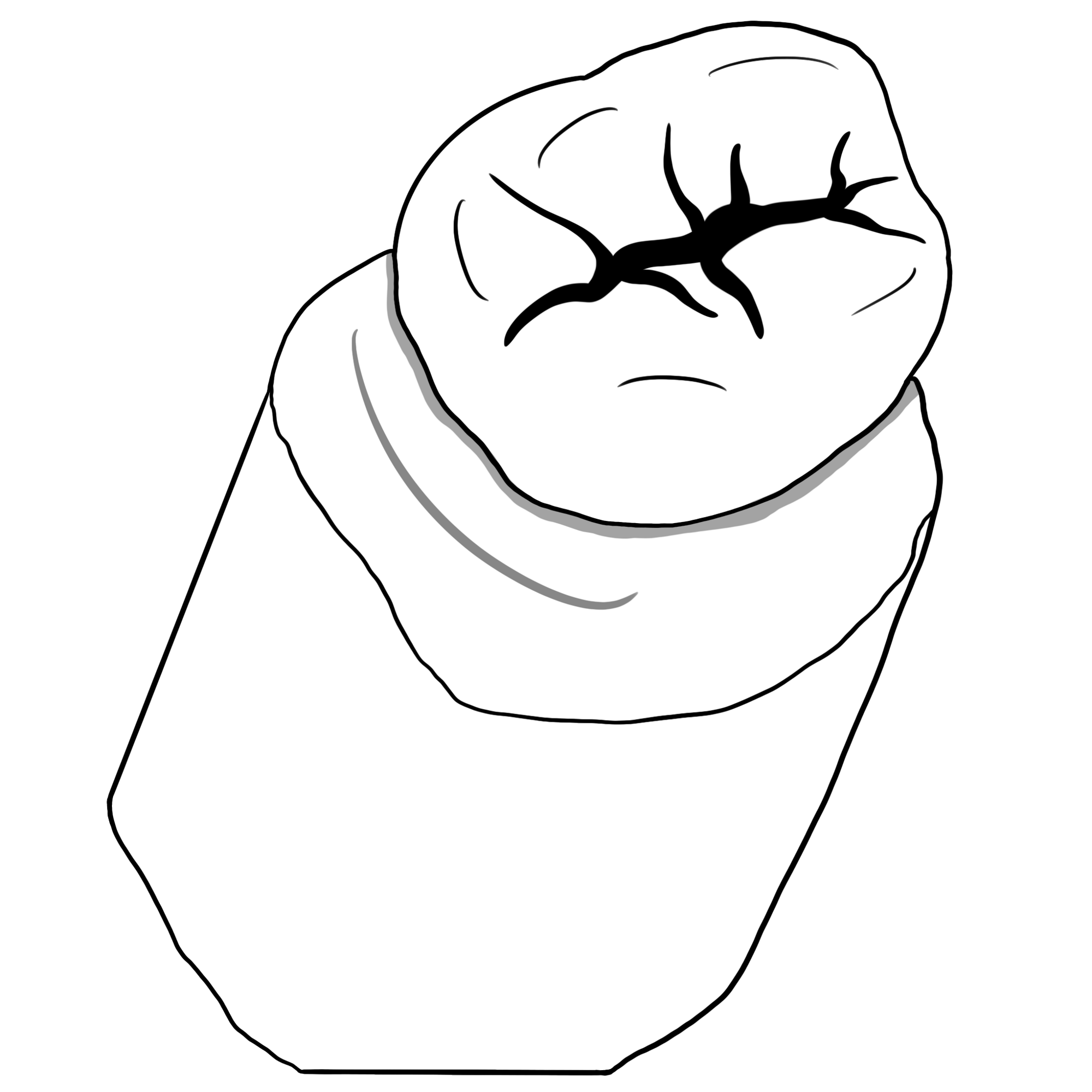

Single Crown Black
Description IPS e.max layered restorations combine a strong lithium disilicate core with hand-layered porcelain, providing enhanced esthetics through customized shading and translucency, particularly beneficial for anterior teeth where appearance is crucial.
Tooth Shades All VITA 3D-Master shades
Patient Visits (est.) 2
Applications Anterior Crown
Materials • Lithium Dicilicate
• Low fusing Porcelain
Benefits • Superior esthetics, ideal for anterior restorations
• Custom shading and translucency
Records • Traditional or digital impressions
• Impression of prepared teeth
• Opposing and bite registration
• Shade
Preparation • Chamfer/shoulder prep with 4-8° axial wall taper
• Minimum 1mm chamfer margin of 10-30°
• Minimum 1.5mm occlusal clearance
• Minimum 1.5mm labial and lingual clearance
• No knife-edge margins or sharp/right angles
Seating • Clean the inside of the crown with cleaning solution
• Cement with self-adhesive or conventional cement
Warranty 2 Years
Insurance Codes • D2740 – Crown – porcelain/ceramic substrate
• D6058 – Abutment-supported porcelain/ceramic
• D6065 – Implant-supported porcelain/ceramic
• D2962 – Labial veneer (porcelain laminate) – Laboratory
• D2610-2644 – Inlays & onlays, 1,2,3, or more surfaces
• D6245 – Pontic for a bridge – porcelain/ceramic
• D6740 – Crown for a bridge – porcelain/ceramic
• D6068 – Abutment-supported porcelain/ceramic for a bridge
• D6075 – Implant-supported porcelain/ceramic for a bridge

Video Resources

What is the Best Veneer Procedure?

Save Money with E.max

Micro layering method

Fixed Restorations Offerings - Product Comparison

Wear Esthetic Quality Strength Price Tooth Shades Materials
IPS e.max® Monolithic ★★★★ ★★★ 530 mpa $ All • Lithium Dicilicate
IPS e.max® Layered ★★★★ ★★★★★ 400 mpa $$$$ All

• Lithium Dicilicate

• Low fusing Porcelain
PFZ (Porcelain Fused Zirconia) ★★★★ ★★★★★ 250 mpa $$$$ All

• 4Y Yittria Zirconia

• Low fusing Porcelain
TLZ Zirconia with MiYO® ★★★★★ ★★★★ 1100 mpa $ All

• Full Contour 4Y Zirconia

• MiYo Liquid Ceramic
zRc Zirconia ★★★★★ ★★★ 1100 mpa $ All • Full Contour 4Y Zirconia
PFM (Porcelain Fused Metal) ★★★★ ★★★ 200 mpa $$$ All

• Metal of choice

• Opaque

• Layered porcelain
Full Cast Metal ★★★★★ ★★ $ N/A Metal of choice: (non-precious white / noble yellow / high noble yellow)
