TLZ Zirconia with MiYO®



Our TLZ Zirconia restorations with MiYO technology offer your practice a proven combination of clinical durability and esthetic excellence.

With a tested flexural strength of 1100 MPa, these high-translucency monolithic restorations provide exceptional resistance to fracture while delivering the natural appearance your patients expect.

Each restoration undergoes individual staining and glazing to achieve enhanced translucency and detailed fissure anatomy compared to our standard zRc offerings.

The pre-shaded zirconia pucks maintain color integrity during chairside adjustments, reducing the need for remakes and saving valuable chair time.

Backed by our six-year warranty against breakage, TLZ restorations give you confidence in long-term clinical outcomes while ensuring patient satisfaction with both function and aesthetics.
TLZ Zirconia Crown Hero

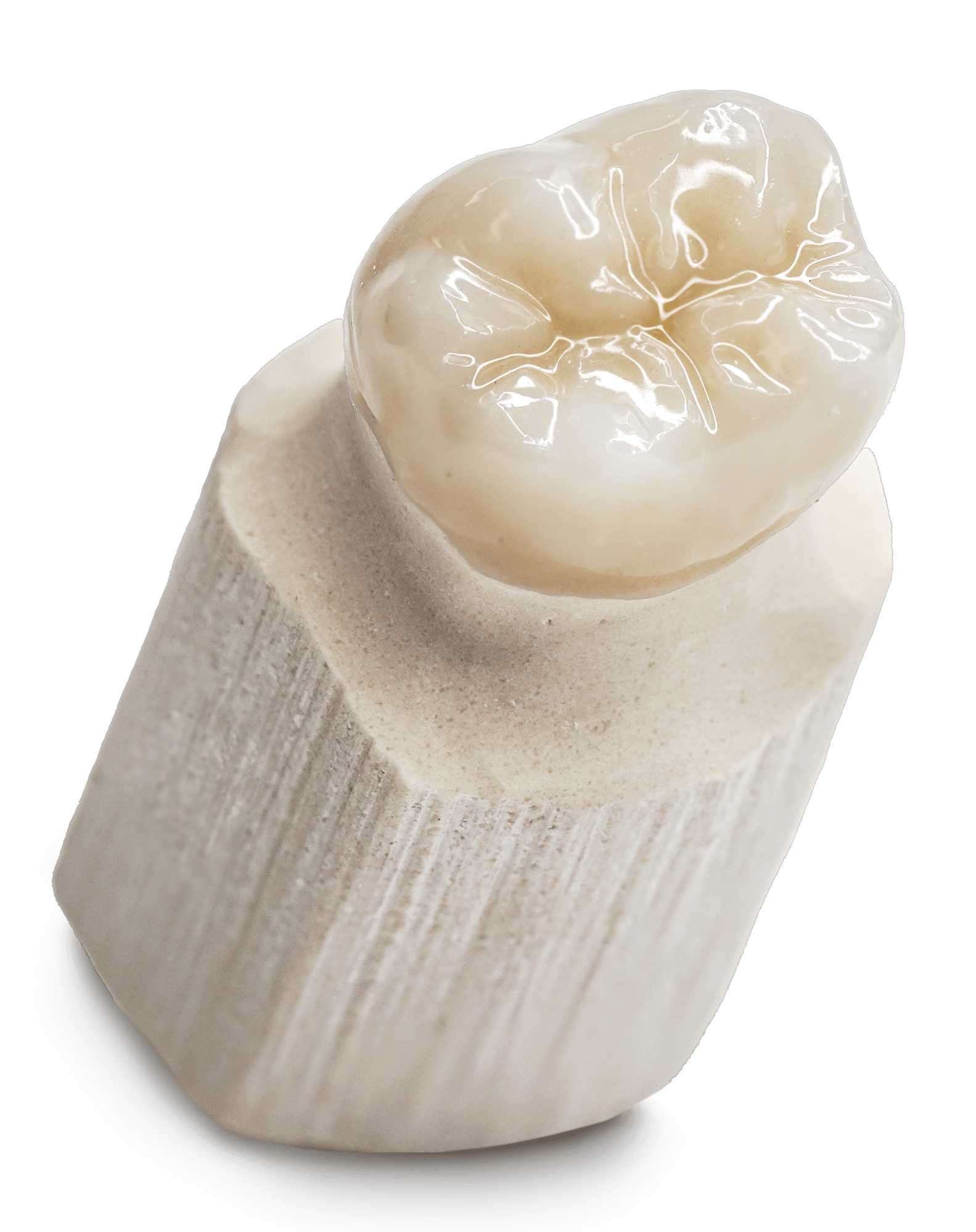

TLZ Zirconia Crown Overview

Clinical Benefits of the TLZ Zirconia with MiYO



  • Superior Strength with Enhanced Esthetics - 1100 MPa flexural strength combined with MiYO's natural tooth-like optical properties
  • Efficient Workflow - Self-glazing MiYO system eliminates separate glazing steps, reducing processing time
  • Natural Characterization - MiYO Color and Structure materials create realistic incisal edges, halos, and mamelons
  • Minimal Material Application - Ultra-thin MiYO layers (0.1-0.2mm) add texture and depth without compromising strength
  • Enhanced Light Dynamics - MiYO creates natural light scattering effects and fluorescence for a lifelike appearance
  • Color Stability - Low firing temperatures ensure no color changes during processing
  • Chairside Efficiency - Pre-shaded zirconia with stable MiYO characterization reduces adjustment time
  • 3D Surface Effects - MiYO Structure creates natural surface texture without requiring cutback procedures
  • Predictable Results - Self-glazing properties ensure consistent finish quality
  • Long-term Reliability - Six-year warranty against breakage with maintained aesthetic properties
  • Versatile Applications - Suitable for both anterior and posterior restorations requiring high aesthetics

What is MiYO liquid ceramic?

MiYO Liquid Ceramic represents a significant advancement in our restoration finishing process that directly benefits your practice and patients. This self-glazing system allows us to create highly aesthetic restorations that mimic the natural look and feel of teeth without the traditional separate glazing step, reducing our processing time and ensuring faster delivery to your office.

The MiYO materials enable us to achieve realistic characterization, including natural incisal edges, halos, and mamelons, while the ultra-thin application layers (0.1-0.2mm) add surface texture and depth without compromising the underlying strength of your TLZ zirconia.

The system's low firing temperatures ensure exceptional color stability with no color changes during processing, giving you predictable, consistent results.

Most importantly for your patients, MiYO creates natural light scattering effects and fluorescence that replicate the optical properties of natural teeth, resulting in restorations that blend seamlessly with existing dentition and deliver the high aesthetic outcomes your patients expect.

Product Specifications

Single Crown Black
Description TLZ restorations utilize highly translucent zirconia, mimicking natural tooth appearance with exceptional light transmission properties while maintaining necessary strength.
Tooth Shades All VITA 3D-Master shades plus all 16 VITA shades and 4 bleach shades
Patient Visits (est.) 2
Applications • Anterior crown
• Anterior bridge
• Posterior crown
• Posterior bridge
Materials • Full contour 4Y zirconia
• MiYO® liquid ceramic
Benefits • Superior strength, ideal for posterior restorations
• Esthetics and translucency without
sacrificing strength
Records • Traditional or digital impressions
• Impression of prepared teeth
• Opposing and bite registration
• Shade
Preparation • Minimum 0.8mm marginal reduction
• Minimum 1.5mm occlusal clearance
Seating • Clean inside of crown with cleaning solution
• Cement with resin modified glass ionomer
• Non-retentive or limited clearance preps may
require bonding
Warranty 6 years
Insurance Codes

• D2740 crown - porcelain/ceramic substrate
• D6058 abutment supported porcelain/ceramic
• D6065 implant supported porcelain/ceramic

Bridges
• D6740 crown - porcelain/ceramic
• D6245 pontic - porcelain/ceramic
• D6068 abutment supported porcelain/ceramic
• D6075 implant supported porcelain/ceramic

Video Resources

3 Options for Monolithic Crowns

Screw-Retained Implant Crowns

Fixed Restorations Offerings - Product Comparison

Wear Esthetic Quality Strength Price Tooth Shades Materials
IPS e.max® Monolithic ★★★★ ★★★ 530 mpa $ All • Lithium Dicilicate
IPS e.max® Layered ★★★★ ★★★★★ 400 mpa $$$$ All

• Lithium Dicilicate

• Low fusing Porcelain
PFZ (Porcelain Fused Zirconia) ★★★★ ★★★★★ 250 mpa $$$$ All

• 4Y Yittria Zirconia

• Low fusing Porcelain
TLZ Zirconia with MiYO® ★★★★★ ★★★★ 1100 mpa $ All

• Full Contour 4Y Zirconia

• MiYo Liquid Ceramic
zRc Zirconia ★★★★★ ★★★ 1100 mpa $ All • Full Contour 4Y Zirconia
PFM (Porcelain Fused Metal) ★★★★ ★★★ 200 mpa $$$ All

• Metal of choice

• Opaque

• Layered porcelain
Full Cast Metal ★★★★★ ★★ $ N/A Metal of choice: (non-precious white / noble yellow / high noble yellow)
