PFM (Porcelain Fused Metal)



At ROE, our PFM crowns utilize over twenty years of CAD/CAM innovation since 2004, with sophisticated software that automatically computes cement space, detects margins, and optimizes porcelain support for superior clinical outcomes.

Our sophisticated software automatically computes optimal cement space, detects margins, identifies undercuts, and optimizes porcelain support for superior clinical outcomes with unprecedented precision and exceptional internal fit accuracy.

We offer Cobalt Chrome as an excellent biocompatible alloy alternative, free from nickel and beryllium, while our advanced milling produces extremely precise margins and eliminates traditional casting variables.

This digital approach delivers unprecedented accuracy, exceptional internal fit, and enhanced porcelain support backed by two decades of proven results for predictable, natural-looking restorations.

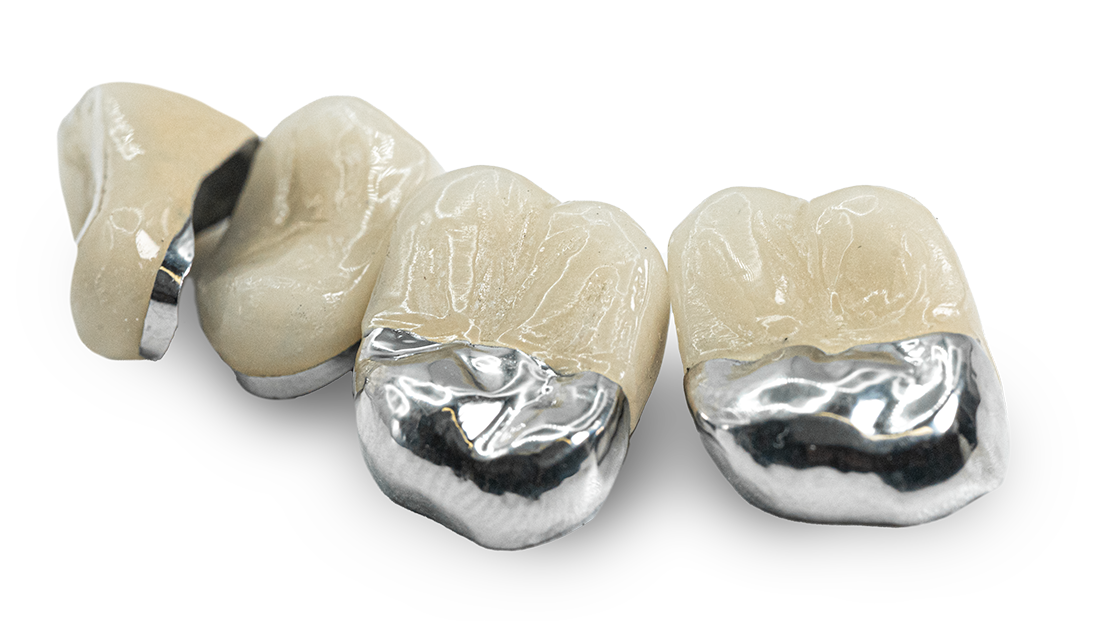

PFM Crown Hero
PFM Crown Specs@0.25x

Clinical Benefits of a PFM Crown



  • Superior Marginal Precision – CAD/CAM design delivers unprecedented accuracy at restoration margins for excellent fit and seal
  • Exceptional Internal Fit – Digital fabrication ensures optimal internal adaptation, reducing microleakage and secondary decay risk
  • Enhanced Porcelain Support – Strategically optimized coping design provides superior porcelain retention and natural aesthetics
  • Biocompatible Metal Options – Cobalt Chrome alloy is nickel and beryllium-free, reducing allergic reaction concerns
  • Optimal Cement Space – Automated software calculation ensures proper cement film thickness for ideal retention
  • Conventional Cementation – Compatible with standard cementation protocols for simplified delivery
  • Predictable Clinical Outcomes – Digital design eliminates traditional casting variables for consistent, reliable results
  • Porosity-Free Copings – Advanced milling technology eliminates casting defects and ensures structural integrity
  • Proven Durability – Metal substructure provides exceptional strength for high-stress posterior applications
  • Natural Appearance – Enhanced porcelain support enables lifelike aesthetics and proper color development
  • Reduced Chair Time – Precise fit minimizes adjustment time during delivery appointments
  • Long-Term Reliability – Two decades of proven CAD/CAM results demonstrate consistent clinical success

Product Specifications

Single Crown Black
Description PFM (porcelain fused metal) restorations combine a strong metal substructure with layered porcelain, representing a time-tested solution that balances esthetics, durability, and cost-effectiveness.
Tooth Shades All 16 VITA shades and 4 bleach shades
Patient Visits (est.) 2
Applications • Anterior bridge
• Posterior bridge
Materials • Metal of choice (non-precious white / noble yellow / high noble yellow)
• Layered porcelain
Benefits • Rigid metal refinement
• Metal occlusal and lingual options
Records • Traditional or digital impressions
• Impression of prepared teeth
• Opposing and bite registration
• Shade
Preparation • Minimum 1.5-2.0 occlusal clearance
• Equigingival to subgingival margins for best esthetics
Seating • Clean the inside of the crown with cleaning solution
• Apply cement inside of crown - do not overfill
• Non-retentive preps may require light aluminous oxide abrasion at 20- 40 lbs
Warranty 2 Years
Insurance Codes  D2750 - Crown - porcelain fuse high noble metal - Crown restoration made of porcelain fused to high noble metal (has a strong, hypo-allergenic base)
• D2751 - Crown - porcelain fused to base metal - Crown restoration made of porcelain fused to predominantly base metal
• D2752 - Crown-porcelain fused noble metal - Crown restoration made of porcelain fused to noble metal
• D2753 - Crown-porcelain fused to titanium - Crown restoration made of porcelain fused to titanium and titanium alloys
• D6059 - Abutment-supported porcelain fused to hi-noble - Crown made of porcelain fused to high noble metal, supported by an abutment on an implant
• D6060 - Abutment-supported porcelain fused-base metal - Crown made of porcelain fused to predominantly base metal, supported by an abutment on an implant
• D6061 - Abutment-supported porcelain fused-metal crown - Crown made of porcelain fused to noble metal, supported by an
abutment on an implant
• D6753 - Crown - porcelain-fused-titanium - Crown made of porcelain fused to titanium and titanium alloys
• D6066 - Implant-supported porcelain fused hi-noble crown - Crown made of metal-ceramic, supported by an implant

Video Resources

The Y Classification

Fixed Restorations Offerings - Product Comparison

Wear Esthetic Quality Strength Price Tooth Shades Materials
IPS e.max® Monolithic ★★★★ ★★★ 530 mpa $ All • Lithium Dicilicate
IPS e.max® Layered ★★★★ ★★★★★ 400 mpa $$$$ All

• Lithium Dicilicate

• Low fusing Porcelain
PFZ (Porcelain Fused Zirconia) ★★★★ ★★★★★ 250 mpa $$$$ All

• 4Y Yittria Zirconia

• Low fusing Porcelain
TLZ Zirconia with MiYO® ★★★★★ ★★★★ 1100 mpa $ All

• Full Contour 4Y Zirconia

• MiYo Liquid Ceramic
zRc Zirconia ★★★★★ ★★★ 1100 mpa $ All • Full Contour 4Y Zirconia
PFM (Porcelain Fused Metal) ★★★★ ★★★ 200 mpa $$$ All

• Metal of choice

• Opaque

• Layered porcelain
Full Cast Metal ★★★★★ ★★ $ N/A Metal of choice: (non-precious white / noble yellow / high noble yellow)
