Full Arch Fixed Workflows: Digital and Analog
There are a number of practical workflows that are available to doctors wishing to create a full-arch fixed prosthesis from an existing prosthesis. This page details:
- Three digital full-arch fixed workflows
- One analog workflow with three different methods of record acquisition
Digital Full-Arch Fixed Workflows
iJIG – Digital Workflow
1.Record Acquisition (appt. 1)
Remove prosthetic and add standard MUA analogs to the prosthetic and set them in stone to capture the MUA positions. With prosthetic removed, scan the tissue and MUA’s (no scan bodies). Then, scan the prosthetic outside mouth with iJIG Scan Analogs, re-seat, and scan the opposing, and bite – upload to the online portal. Ship the new analog model back to ROE.
2. Doctor Receives (appt. 2)
i JIG, sectioned ready for luting, equilibrating, relining if needed, bite & opposing.
3. Return Records to ROE
iJIG passively luted, reline impression, opposing model, bite, photos, Rx with changes.
4. Doctor Receives (appt. 3)
Final restoration, or second Printed Try-In with changes.
Remove prosthetic and add standard MUA analogs to the prosthetic and set them in stone to capture the MUA positions. With prosthetic removed, scan the tissue and MUA’s (no scan bodies). Then, scan the prosthetic outside mouth with iJIG Scan Analogs, re-seat, and scan the opposing, and bite – upload to the online portal. Ship the new analog model back to ROE.
2. Doctor Receives (appt. 2)
i JIG, sectioned ready for luting, equilibrating, relining if needed, bite & opposing.
3. Return Records to ROE
iJIG passively luted, reline impression, opposing model, bite, photos, Rx with changes.
4. Doctor Receives (appt. 3)
Final restoration, or second Printed Try-In with changes.
iCAM iMetrics4D – Digital Workflow
1. Record Acquisition (appt. 1)
Scans: ICamBodies, ICamRefs (or DESS scan bodies), 360 scan of the prosthetic outside, scan of seated prosthetic with surrounding tissue, scan of the opposing, and scan of the bite. Upload to ROE via the online portal.
2. Doctor Receives (appt. 2)
Prototype for final to equilibrate.
3. Return Records to ROE
If the prototype is perfect, call to fabricate the final. If not, return prototype equilibrated and relined if needed, with bite and opposing model.
4. Doctor Receives (appt. 3)
Final restoration, or second Printed Try-In with changes.
Scans: ICamBodies, ICamRefs (or DESS scan bodies), 360 scan of the prosthetic outside, scan of seated prosthetic with surrounding tissue, scan of the opposing, and scan of the bite. Upload to ROE via the online portal.
2. Doctor Receives (appt. 2)
Prototype for final to equilibrate.
3. Return Records to ROE
If the prototype is perfect, call to fabricate the final. If not, return prototype equilibrated and relined if needed, with bite and opposing model.
4. Doctor Receives (appt. 3)
Final restoration, or second Printed Try-In with changes.
iJIG+ – Digital/Analog Workflow
1. Record Acquisition (appt. 1)
Scan prosthetic outside mouth with iJIG Scan Analogs, opposing, bite, tissue w/ MUA’s only – upload to the online portal. Model of MUA heads and tissue – ship back to ROE.
2. Doctor Receives (appt. 2)
Prototype for final to equilibrate.
3. Return Records to ROE
Equilibrated and relined if needed, with bite and opposing model.
4. Doctor Receives (appt. 3)
Final restoration, or second Printed Try-In with changes.
Scan prosthetic outside mouth with iJIG Scan Analogs, opposing, bite, tissue w/ MUA’s only – upload to the online portal. Model of MUA heads and tissue – ship back to ROE.
2. Doctor Receives (appt. 2)
Prototype for final to equilibrate.
3. Return Records to ROE
Equilibrated and relined if needed, with bite and opposing model.
4. Doctor Receives (appt. 3)
Final restoration, or second Printed Try-In with changes.
Analog Full-Arch Fixed Workflows
Record Acquisition (3 options)
1. CHROME RAPID
Send to ROE the CHROME RAPID surgical pick-up prosthetic with reline impression, equilibrated, with analog bite and opposing.
Send to ROE the CHROME RAPID surgical pick-up prosthetic with reline impression, equilibrated, with analog bite and opposing.

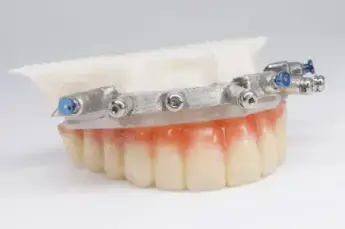

1. CHROME Prosthetic
Send to ROE the CHROME surgical prosthetic with reline impression, equilibrated, with analog bite and opposing.
Send to ROE the CHROME surgical prosthetic with reline impression, equilibrated, with analog bite and opposing.

1. RAPID Appliance
Flask with analogs set in stone, putty matrix of the prosthetic, opposing model, bite, impression or model of tissue, and MUA’s and send to ROE.
Flask with analogs set in stone, putty matrix of the prosthetic, opposing model, bite, impression or model of tissue, and MUA’s and send to ROE.
2. Doctor Receives (appt. 2)
Prototype for final to equilibrate.
3. Return Records to ROE
Equilibrated and relined if needed, with bite and opposing model. Send everything to ROE.
4. Doctor Receives (appt. 3)
Final restoration, or second Printed Try-In with changes.
Prototype for final to equilibrate.
3. Return Records to ROE
Equilibrated and relined if needed, with bite and opposing model. Send everything to ROE.
4. Doctor Receives (appt. 3)
Final restoration, or second Printed Try-In with changes.
