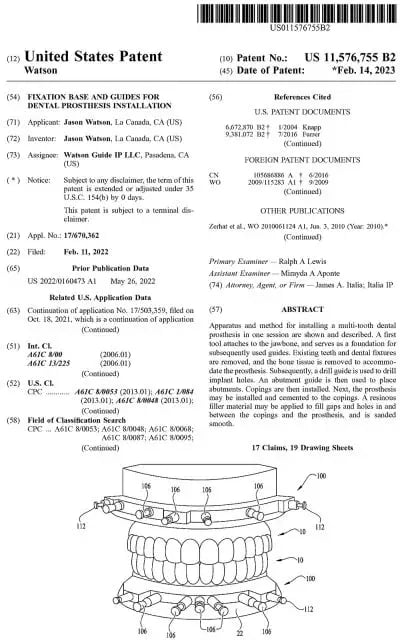

Fixation base and guides for dental prosthesis installation

Patent No:

11576755

Date of Patent:

Feb. 14, 2023

Abstract

Apparatus and method for installing a multi-tooth dental prosthesis in one session are shown and described. A first tool attaches to the jawbone, and serves as a foundation for subsequently used guides. Existing teeth and dental fixtures are removed, and the bone tissue is removed to accommodate the prosthesis. Subsequently, a drill guide is used to drill implant holes. An abutment guide is then used to place abutments. Copings are then installed. Next, the prosthesis may be installed and cemented to the copings. A resinous filler material may be applied to fill gaps and holes in and between the copings and the prosthesis, and is sanded smooth.

Click here to review the complete patent.

Click the image to review the complete patent

Patent 11576755

Intermediate prosthesis for dental prosthesis installation

Patent No:

11589963

Date of Patent:

Feb. 28, 2023

Abstract

Methods for generating and providing a full arch prosthesis from a pre-existing prosthesis are presented, starting from the pre-existing prosthesis. This prosthesis is removed from the mouth, scanned, and replaced within the mouth. An intermediate prosthesis is generated from the scan, and modified to match a final physiological target configuration of the patient’s mouth. The intermediate prosthesis is used to generate a final virtual representation of the target configuration, from which final virtual representation the final working prosthesis is fabricated. The intermediate prosthesis is mounted in the patient’s mouth in sections, for desirable repositioning, sections then being bonded together. Copings can be digitally subtracted to enable press fit new copings to be installed. Alternatively, the intermediate prosthesis can include integrated false copings. The intermediate prosthesis is scanned to generate a final digital model or virtual representation of the desired final prosthesis. The final working prosthesis may then be fabricated using the final virtual representation.

Click here to review the complete patent.

Click the image to review the complete patent

Patent 11589963
